PN: ESP32-S3 1.47" LCD Development Board

Type: Module

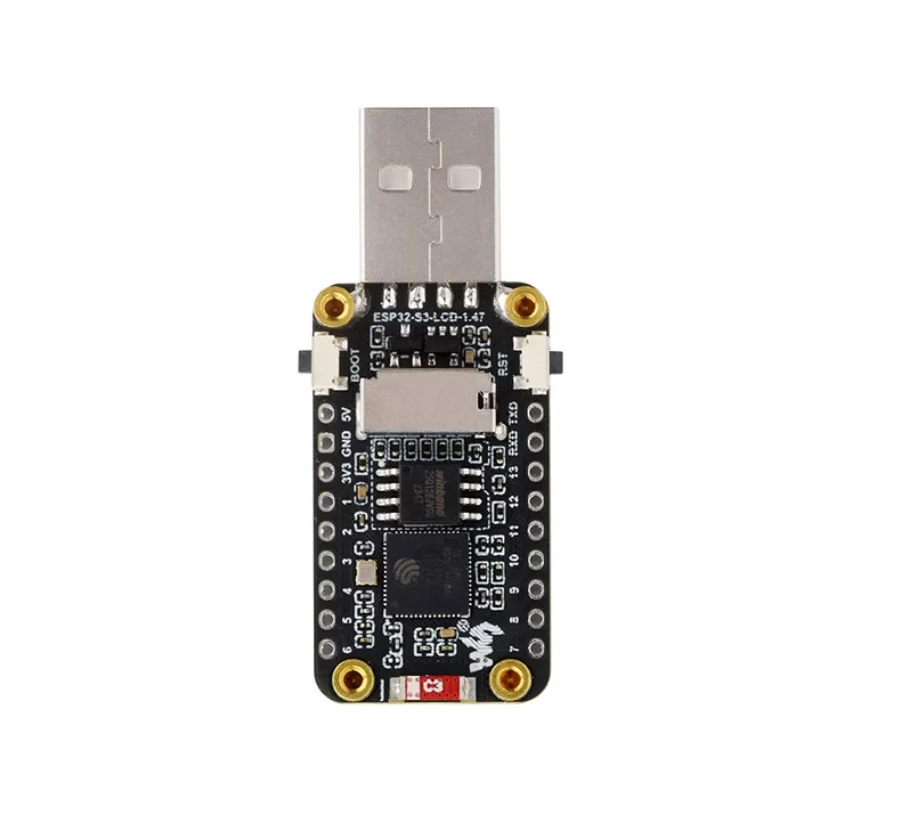

🚀 ESP32-S3 1.47" LCD Development Board

• 🎨 1.47" 172x320 LCD – Vibrant colors for sleek GUIs.

• 🧠 Dual-Core ESP32-S3 – Powering LVGL and complex tasks.

• 💾 8MB PSRAM & 16MB Flash – Ample resources for graphics/data.

• 📡 Wi-Fi & BLE 5 – Connected projects made easy.

• 🔌 GPIO Headers & MicroSD – Expand and store effortlessly.

Build Intuitive Interfaces with All-in-One Hardware.

Product Overview

The ESP32-S3-LCD-1.47 is a feature-rich development board designed for advanced Human-Machine Interface (HMI) applications. Combining a vibrant 1.47-inch LCD, ample memory, and versatile connectivity, it empowers developers to create responsive GUI-driven projects with ease. Ideal for IoT dashboards, industrial controls, or interactive devices, this board simplifies prototyping and deployment.

Key Features & Technical Advantages

• 🧠 High-Performance Dual-Core Processing
  Powered by the ESP32-S3 with a Xtensa® LX7 dual-core processor (up to 240 MHz), delivering robust performance for GUI frameworks like LVGL and complex algorithms.

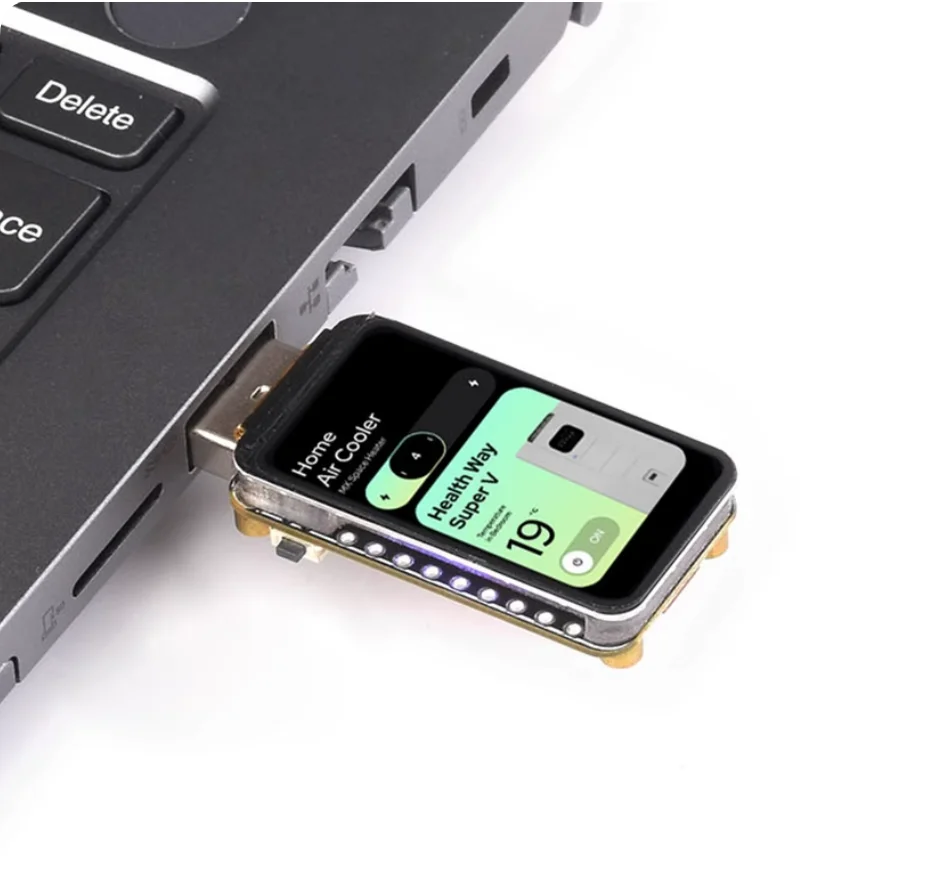

• 🖥️ Crisp LCD Display
  A 1.47-inch LCD with 172×320 resolution and 262K colors offers sharp visuals for dynamic interfaces, from data visualizations to interactive controls.

• 📡 Seamless Wireless Connectivity
  Supports 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE) with an onboard antenna, enabling reliable communication for IoT and smart devices.

• 💾 Expansive Memory & Storage
  Includes 16MB Flash for program storage, 8MB PSRAM for handling graphics, and a MicroSD card slot to store assets like images, fonts, or logs.

• 🔧 Ready for Expansion

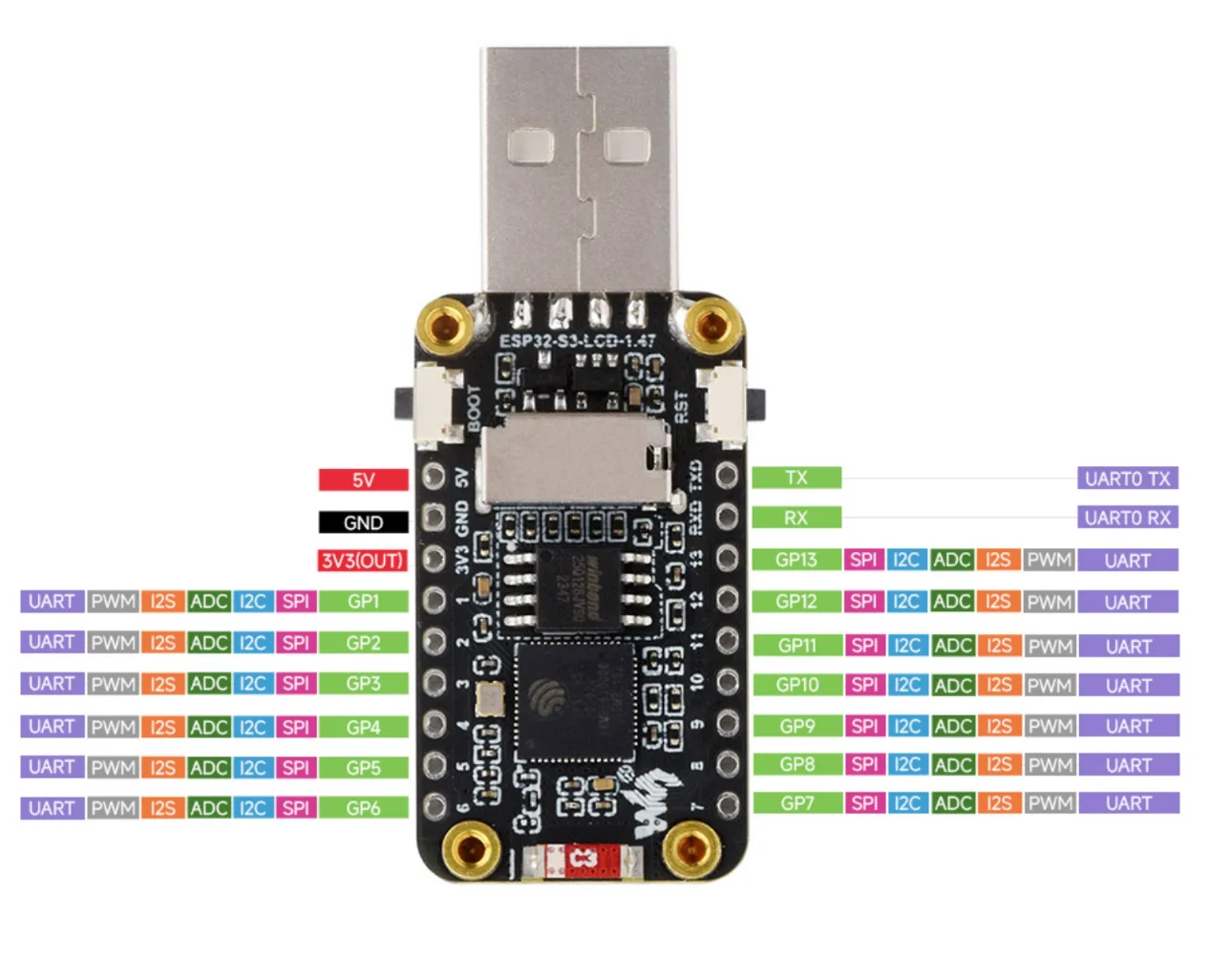

  Most GPIOs are broken out to headers, allowing easy integration of sensors, actuators, or other peripherals. The onboard RGB LED enables visual feedback and dynamic lighting effects.

• ⚡ Optimized Power Management
  Supports flexible clocking and multiple power modes, enabling efficient operation in battery-powered or energy-sensitive applications.

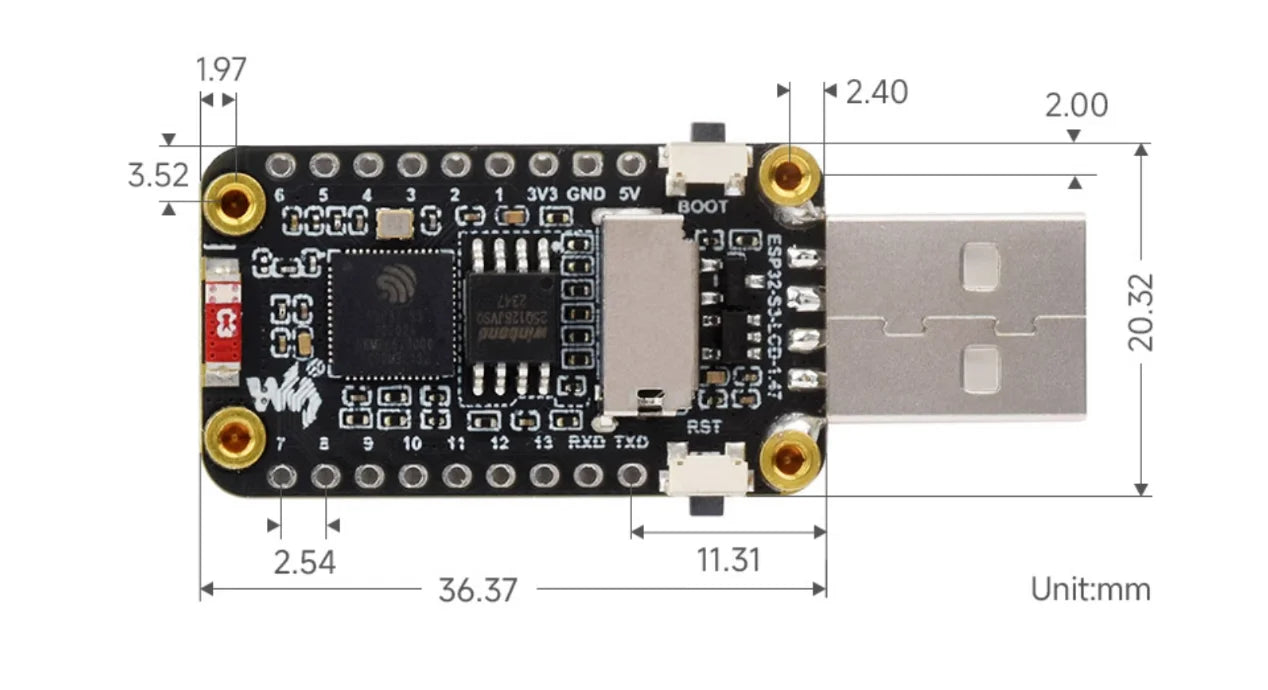

Technical Specifications

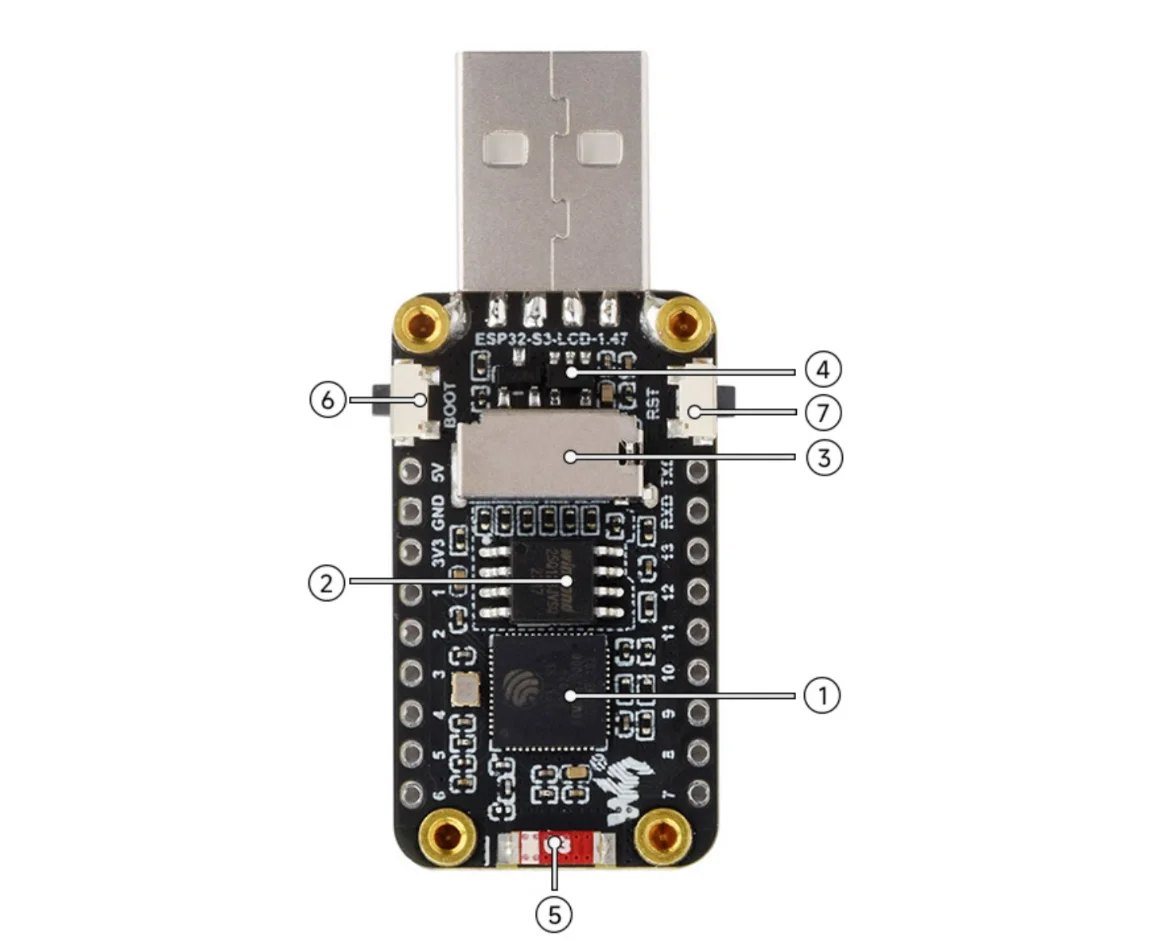

1. ESP32-S3R8

   • Dual-core processor with an operating frequency of up to 240MHz.

2. 16MB Flash

3. Micro SD Card Slot

4. ME6217C33M5G

   • Low-dropout (LDO) regulator, maximum current 800mA.

5. Chip Ceramic Antenna

6. BOOT Button

7. RESET Button

Configuration List / Bill of Materials

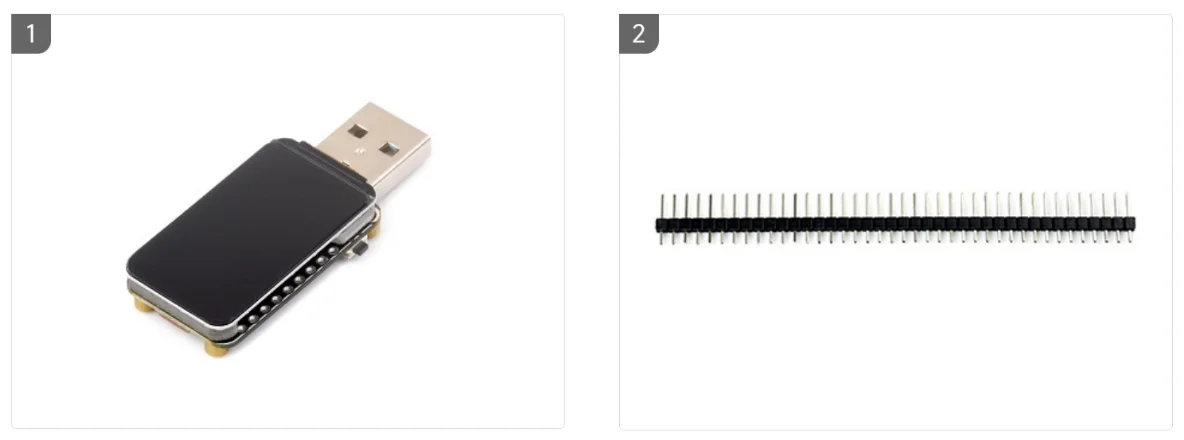

1. ESP32-S3-LCD-1.47 × 1

2. Black Straight Pin Header × 1
